Researchers work to track the fragmented magma bombs that fly through the air during an explosive eruption
Off the north coast of Sicily, an eruption of the Stromboli volcano sends decametric lava fragments flying into the air. A new method allows researchers to track these "bombs" and to reconstruct their flight trajectories in three dimensions. Credit: Florian Becker/Vulkankultour
Source: Geochemistry, Geophysics, Geosystems

In explosive volcanic eruptions, bits of fragmented magma can be shot through the air by the release and expansion of pressurized gas. The trajectory map of these centimetric to decametric fragments, called “bombs,” is an important parameter in the study of explosive eruptions and the dangers that they present: Understanding how fast the debris is moving, how far it moves, and in which direction pieces travel could help scientists assess the hazards of volcanic eruptions or man-made explosions. In a new paper, Gaudin et al. present a method for studying the motion of volcanic bombs in three dimensions, allowing for more precise trajectory reconstructions.

There are several conditions that make observing active volcanic vents and bombs difficult, including the obvious difficulty of getting cameras close to the vents. The most significant of the problems is the large number of bombs from each explosive event that may change shape in flight and whose flight paths overlap with one another.

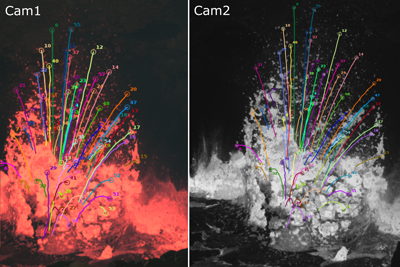

When observing a bubble bursting in Halema‘uma‘u lava lake in Hawaii, researchers manually tracked selected pieces of debris on stills of a video. These two images of the resulting set of trajectories could then be combined to produce a three-dimensional map. Credit: Gaudin et al. [2016]

These limitations make any automatic tracking difficult or impossible, so the scientists simplified their procedure by relying on manual tracking of a few representative bombs rather than a computerized account of every single one. By placing two or more high-speed video cameras at well-documented positions around the volcanic vent, they were able to manually determine an object’s location in all of the images, computing the object’s position in three dimensions.

The human component of this manual process can be a major source of error since the person tracking the bombs makes a series of subjective choices, like deciding where exactly on the object to select as a representative point in each frame. If the cameras are tilted at all, that can also be a significant component of uncertainty in the measurements.

In the new study, the team was able to reduce uncertainty to 10° in angle and 20% in speed of the bombs. They used three events as examples: a bursting bubble at the Halema‘uma‘u lava lake in Hawaii, in-flight bomb collision, and an explosive ejection event at Stromboli volcano in Italy. A video showing the bursting bubble followed by the explosive ejection and their model in action is given below.

YouTube video

In Stromboli’s case, the reliability of the trajectory reconstruction was demonstrated by comparing the 3-D reconstruction with the low-speed, low-resolution cameras of the Stromboli permanent monitoring network. These case studies demonstrated just a few of the numerous contexts in which this 3-D tracking method could be useful, both within and beyond the study of volcanic vents and magma. (Geochemistry, Geophysics, Geosystems,, 2016)

—Leah Crane, Freelance Writer


Crane, L. (2017), Tracking volcanic bombs in three dimensions, Eos, 98, Published on 13 March 2017.
