Aerial photo of San Andreas Fault.
Strike-slip faults like the San Andreas have sections of locked movement and sections of slow and steady creep. Researchers now have physically modeled what happens to the land around faults with different types of movement. Credit: John Wiley/Wikimedia, CC BY 3.0
Source: Geophysical Research Letters

Strike-slip faults can be fickle about their movement—they can move slow and steady or remain stationary until their built-up stress is let loose in one go. But how do these faults’ movements change from a locked and sudden release to a steady creep? And how does this change affect the rocks around the fault? Understanding where these deformation styles occur and the variables that contribute to the kind of movement is important in determining earthquake hazards.

To uncover what happens near a change in slip, Ross et al. created a physical model to isolate slip behavior along a strike-slip structure. They used deforming silicone as an analogue for Earth’s crust, which allowed them to disregard other variables that can influence slip types, including lithology differences, deformation history, and fault geometry.

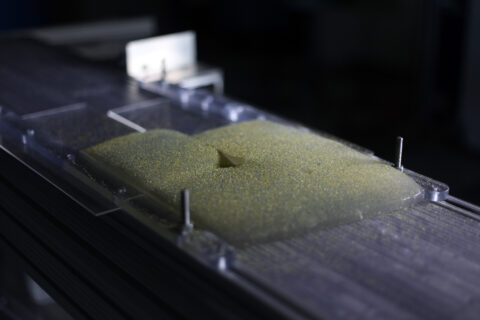

Researchers deformed a slab of silicone using a shear table to simulate the motion of a strike-slip fault. Credit: Emily Ross

One side of the experiment remained stationary while the other side moved, and along that boundary between the two sides, one portion was stuck to itself, or locked, while another was cut to simulate creeping. Colored sand grains were sprinkled on the surface to track motions. Top-down time-lapse photography captured 2D deformation, whereas 3D deformation was tracked with photogrammetry.

They found that contraction develops where the creeping portion of the fault runs into the locked section of the fault. Simultaneously, extension occurs on the opposite side of the fault as the creeping section pulls away from the locked section. This pattern repeats in secondary locations, creating an alternating pattern of extension and contraction. These zones have opposite vertical motions, creating topographic highs and lows.

When the researchers compared their model to field data on the San Andreas Fault in central California, they found that both model and field data showed a pattern of alternating extension and contraction across the creeping fault sections. According to the authors, this work shows that a change in slip behavior can lead to off-fault deformation and could explain some of the patterns seen along the San Andreas Fault. (Geophysical Research Letters,, 2022)

—Sarah Derouin, Science Writer

Citation: Derouin, S. (2022), How land deformation occurs when fault sections creep, Eos, 103, Published on 1 July 2022.
